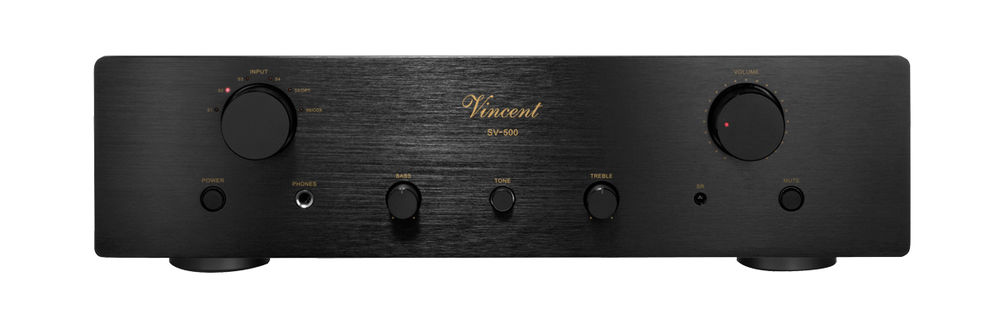

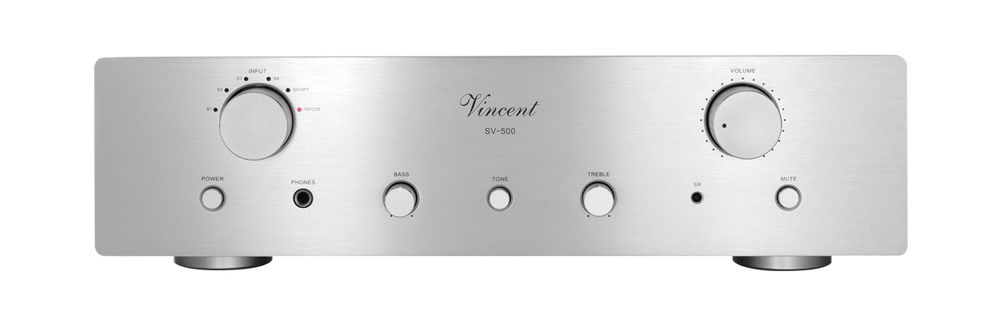

SV-500

powerLine

Hybrid Integrated Amplifier

Our access into the "Hybridworld" of Vincent. On the basis of the established SV-227, we have developed this amplifier. With a little less output power, but with a similar timeless design and with the typical Vincent sound characteristics the SV-500 is presented.

Technical Specifications

  • Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB; 20 Hz - 50 kHz +/- 2 dB
  • Nominal Output Power RMS/8 Ohm: 2 x 50 Watt
  • Nominal Output Power RMS/4 Ohm: 2 x 80 Watt
  • Input Sensitivity: 420 mV
  • T.H.D.: < 0.1% (1 kHz, 1 Watt)
  • Signal-Noise Ratio: >90dB
  • Input Impedance: 47 kOhm
  • Inputs: 4 x Stereo RCA, 1 x Optical, 1 x Coax

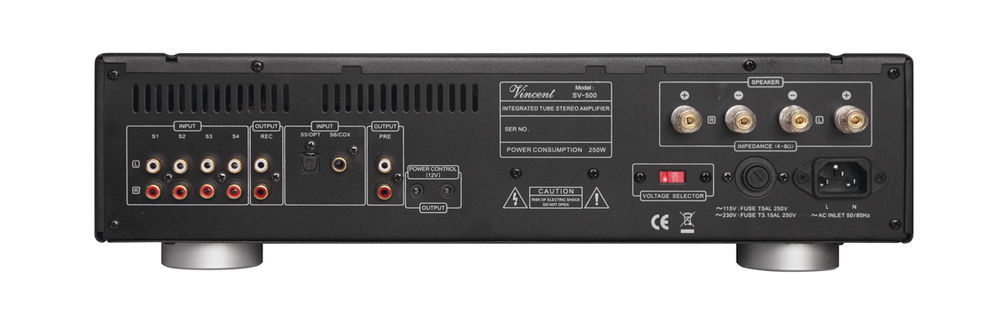

  • Outputs: 1 x Stereo RCA Rec Out, 1 x Stereo RCA Pre Out, 2 x Power Control, 2 x 2 Speaker Terminal
  • Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Tubes: 1 x 12AX7, 2 x 6N1
  • Colour: Black or Silver
  • Weight: 10kg
  • Dimensions (W x H x D): 430 x 118 x 375 mm

SA-32

Hybrid Stereo Preamplifier

The further development of our hybrid preamplifier SA-31.

SP-332

Hybrid Stereo Poweramplifier

The newly developed Hybrid-Poweramplifier and felicitous successor for the legendary SP-331, make your sound more warm and natural.

SV-228

Hybrid Integrated Amplifier

The SV-228 is the consistent further development of one of ours successful amplifiers series in the Power Line.

CD-S1.2

Hybrid CD-Player

An unusual player with no rivals, with a valve output stage and a large number of connection options.

PHO-200

Phono Preamplifier

Phono-Premamplifier for connecting your turntable to a line inout of your amplifier.

PHO-300

Phono Preamplifier

Phono-Premamplifier for connecting your turntable to a line inout of your amplifier.

PHO-500

Phono Preamplifier

A unsophisticated and low noise playback is the "job" of a good phono preamplifier. With the PHO-500 we managed this.

PF-2

Power Conditioner

This new PF-2 mains filter eliminates disturbing influences in your HiFi or home cinema system.

DAC-1MK

D/A-Converter

The DAC-1MK converts digital music files with a max. sampling rate of 32 bit / 384 kHz (DSD).
