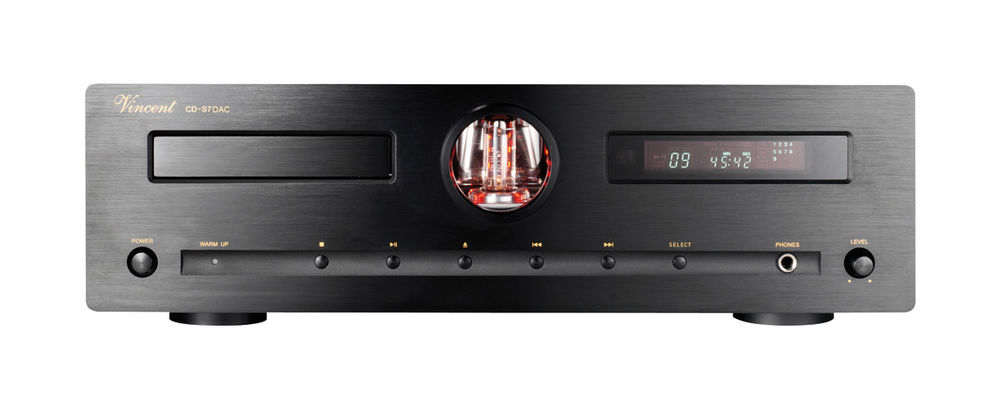

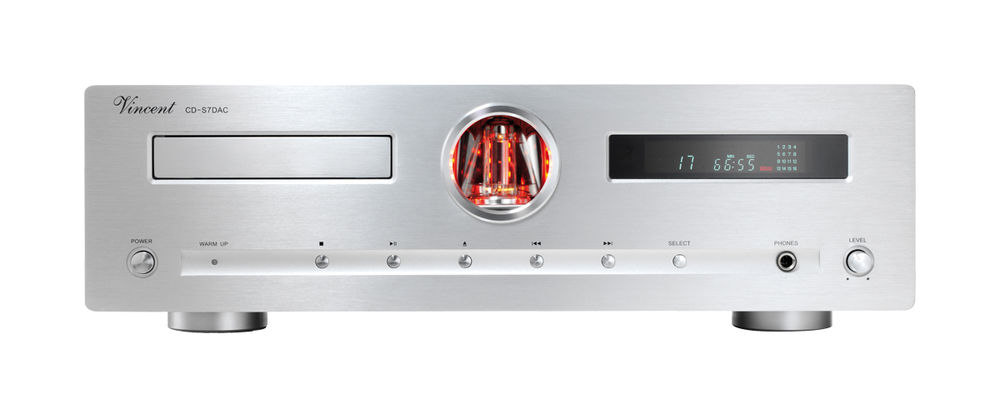

CD-S7 DAC

tubeLine

Hybrid CD-Player

The abbreviation DAC already indicates that it is possible to transfer external digital signals (optical, coaxial or USB) to the excellent Burr-Brown D/A converter PCM 1796, thus profiting from the fantastic analogue signal processing. The analogue signal is output fully symmetrically and processed along the signal route by means of Russian tubes.

Technical Specifications

  • D/A Converter: 24 bit / 192 kHz
  • Frequency Response: 20 Hz - 20 KHz +/-0.5 dB
  • Harmonic Distortion: < 0.005 %
  • Signal-Noise Ratio: > 94 dB
  • Dynamic Range: > 100 dB
  • Audio Output Voltage: 2.5 V
  • Channel Separation: > 90 dB
  • Max. Power Consumption: 50 Watt

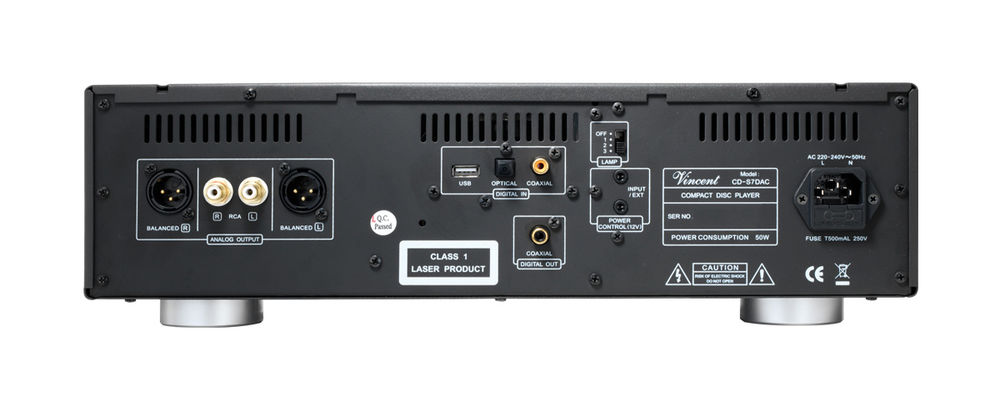

  • Inputs: 1 x Headphone Jack 6.3 mm, 1 x USB, 1 x Optical, 1 x Coaxial, 1 x 3.5 mm Jack (Power Control)
  • Outputs: 1 x Stereo RCA, 1 x Stereo XLR, 1 x Coaxial, 1 x 3.5 mm Jack (Power Control)
  • Tubes: 2 x 6922, 1 x 6Z4, 1 x 12AX7
  • Playable Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Colour: Black / Silver
  • Weight: 9 kg
  • Dimensions (WxHxD): 430 x 132 x 356 mm
