SP-T700

tubeLine

Class-A Hybrid Mono Poweramplifier

A completely new combination amplifier was developed for the SP-T700, exploiting the respective advantages of tubes and transistors in an innovative manner, combining them to create a harmonious whole. The SP-T700 is characterised by excellent reproduction features that remain constant over the entire frequency and load range and it has a superior power reserve.

The tubes are 100% selected frame grid tubes from the military sector. They are designed for a lifetime of 10,000 hours.

The best of two worlds: Subtle reproduction of voices and acoustic instruments, plus the strength and punch of a huge rock stage – the SP-T700 is an exceptional power amplifier that meets such contradictory requirements with elegant ease. This is only possible due to the latest tube technology, combined with a transistor end stage. The outcome: Inspiring sound, plus strength and comprehensive speaker control.

Technical Specifications

  • Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB
  • Nominal Output Power RMS / 8 Ohm: 150 Watt
  • Nominal Output Power RMS / 4 Ohm: 300 Watt
  • Nominal Output Power Class A / 8 Ohm: 10 Watt
  • Harmonic Distortion: < 0.01 % (1 kHz, 1 Watt); < 0.1 % (1 kHz, 25 Watt)
  • Input Sensitivity: 1 V (for 25 Watt RMS at 4 Ohm)
  • Signal-Noise Ratio: > 90 dB
  • Input Impedance: > 22 kOhm
  • Max. Power Consumption: 306 Watt
  • Inputs: 1 x Mono RCA, 1 x 3.5 mm Jack (Power Control)
  • Outputs: 2 x 2 Speaker Terminal, 1 x 3.5 mm Jack (Power Control)
  • Tubes: 1 x 6S3P-EV; 1 x 6SCH9P, 1 x 6Z4
  • Colour: Black / Silver
  • Weight: 16 kg
  • Dimensions (WxHxD): 210 x 263 x 400 mm

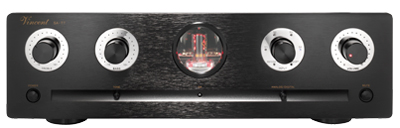

SA-T7 Diamond

Stereo Tube Preamplifier

With the SA-T7 Diamond we have created a very special edition of our reference preamplifier, the SA-T7 MK.

SA-T7MK

Stereo Tube Preamplifier

After several successful years, we have revised our reference preamplifier. The SA-T7 becomes the SA-T7 MK.

SV-700

Class-A Hybrid Integrated Amplifier

In order to minimize crossfeeds and achieving a better distortion factor we decided upon a consistent symmetric design

SV-737

Class-A Hybrid Integrated Amplifier

Our new flagship of the integrated amplifiers. The preamp section was completely new developed and benefits of our SA-T7.

SV-237MKII

Class-A Hybrid Integrated Amplifier

The third edition of our successful model is presented in a completely revised design.

SV-200

Hybrid Integrated Amplifier

The TubeLine in a compact design, but not "compact" in sound quality.

CD-S7 DAC

Hybrid CD-Player

This CD player has a symmetrically designed output stage and the capability ofplaying new media.

CD-200

Hybrid CD-Player

With the CD-200 we present the perfect match fort he SV-200.

DAC-700

D/A Converter

Digital/Analogue-converter for the highest demands. Totally six different inputs are available working with a sampling rate up to 32bit and support DSD files.

PHO-701

Phono Preamplifier

The successor to the PHO-700 phono premaplifier with tube output stage. Suitable for MM and MC cartridges.

KHV-200

Hybrid Headphone Amplifier

To get the best sound quality of your headphones, an external headphone amplifier is needed.
