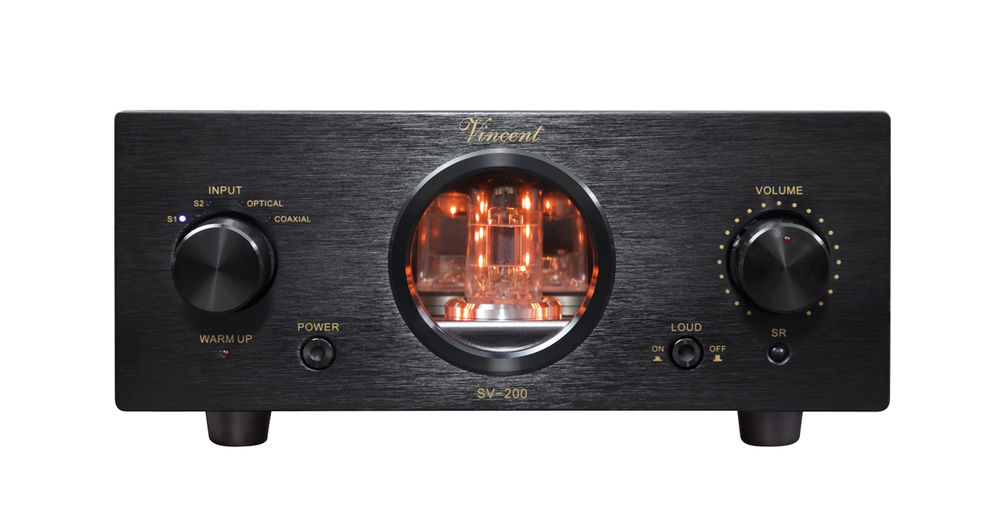

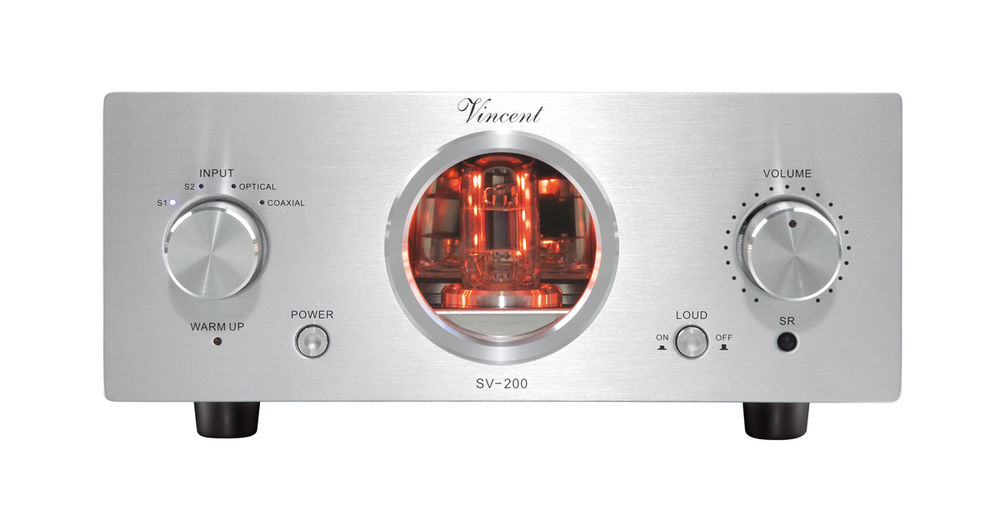

SV-200

tubeLine

Hybrid Integrated Amplifier

With the SV-200 we present the little brother of the SV-237MK and the SV-700. Despite the compact construction only a few compromises had to be made. A high dynamic and a low noise level stand out for this amplifier. The music signal is conditioned through two 6N1 tubes.

Technical Specifications

  • Frequency Response: 20 Hz - 20 kHz ±0,5 dB
  • Nominal Output Power RMS / 8 Ohm: 2 x 25 Watt
  • Nominal Output Power RMS / 4 Ohm: 2 x 35 Watt
  • Harmonic Distortion: < 0.1 % (1 kHz, 1 Watt)
  • Input sensitivity: 220 mV
  • Signal-Noise Ratio: > 72 dB
  • Input Impedance: 47 kOhm
  • Max. Power Consumption: 125 Watt

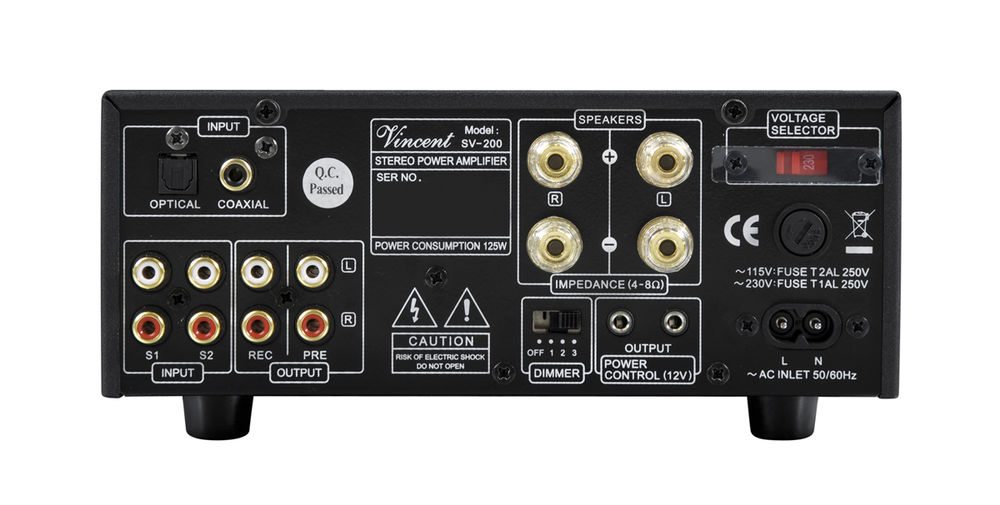

  • Inputs: 2 x Stereo RCA, 1 x Coaxial, 1 x Optical
  • Outputs: 1 x Stereo RCA Pre Out, 1 x Stereo RCA Rec Out, 2 x 2 Speaker Terminal, 2 x 3.5 mm Jack (Power Control)
  • Tubes: 2 x 6N1
  • Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Colour: Black / Silver
  • Weight: 5 kg
  • Dimensions (WxHxD): 210 x 95 x 320 mm
