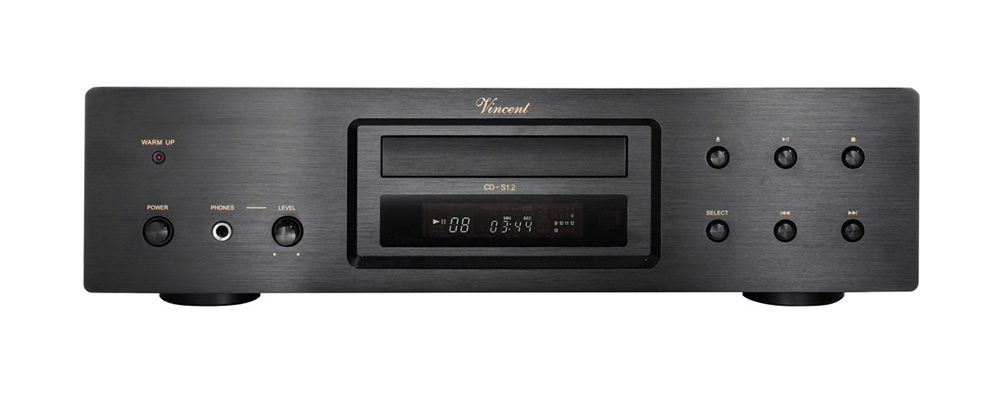

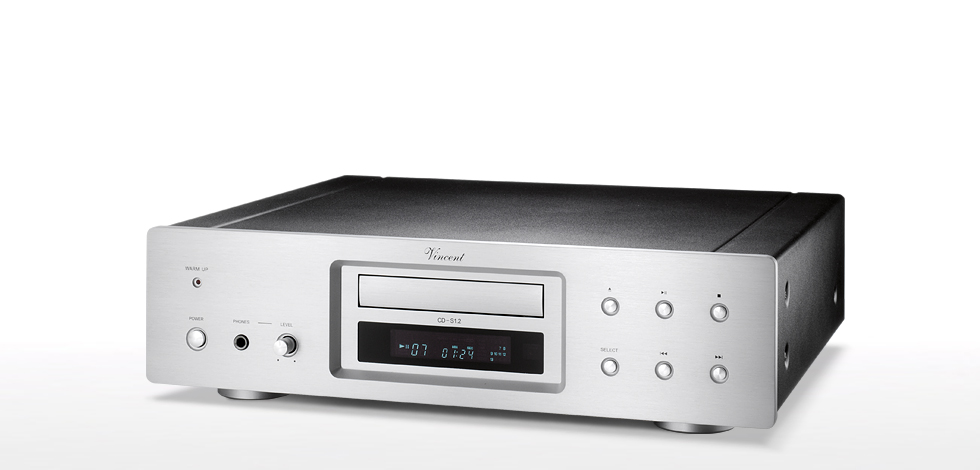

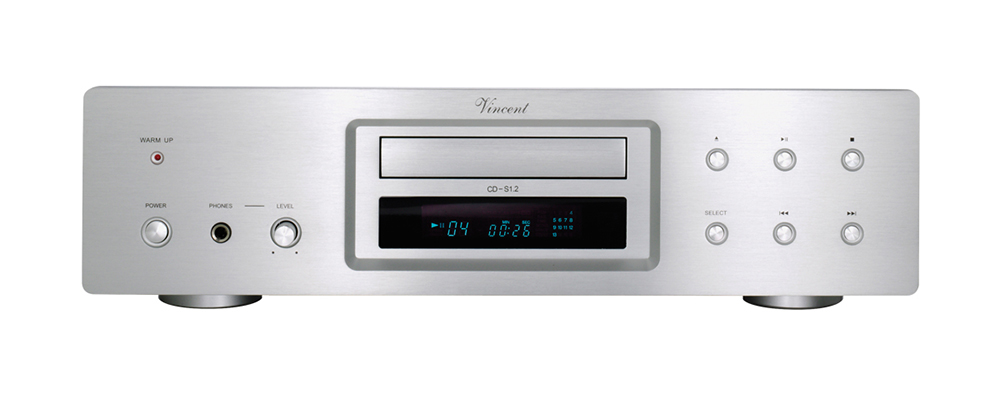

CD-S1.2

powerLine

Hybrid CD-Player

The successor of our CD-S1.1 offers now also the possibilty to process external, digital signals via an optical, coax or USB input. Those are converted through the Burr-Brown chip PCM 1796. In the analog section the signal is conditioned through two 6N16 tubes which are responsible for a homogeneous and distinctive sound.

Technical Specifications

  • D/A Converter: 24 bit / 192 kHz
  • Frequency Response: 20 Hz - 20 kHz
  • T.H.D.: < 0.005 %
  • Signal-Noise-Ratio: > 94 dB
  • Dynamic Range: > 100 dB
  • Audio Output Voltage: 2.5 V
  • Channel Separation: > 90 dB
  • Max. Power Consumption: 35 Watts

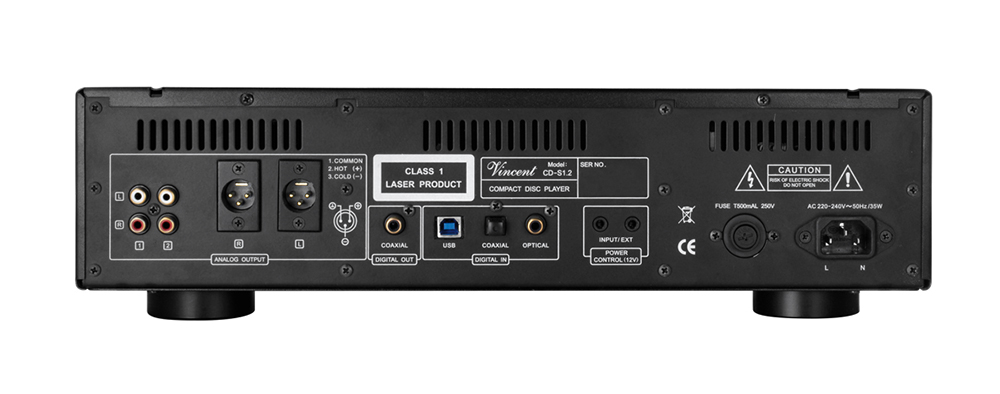

  • Inputs: 1 x Optical, 1 x Coaxial, 1 x USB, 1 x Power Control
  • Outputs: 2 x Stereo RCA, 1 x Stereo XLR, 1 x Coaxial, 1 x Power Control, 1 x Headphone Jack
  • Tubes: 2 x 6N16
  • Colour:  Black or Silver
  • Weight:  8.5 kg
  • Dimensions (W x H x D):  430 x 106 x 342 mm
